CI Butterfly Valves
Cast Iron Butterfly Valves as per IS:13095
Cast Iron Butterfly Valves, designed in accordance with IS:13095, offer a compact and cost-effective solution for regulating and isolating flow in water supply, wastewater, and general industrial applications. Lightweight and space-saving compared to other valve types, butterfly valves are ideal for both above-ground and underground installations.
Available in wafer, lug, and double flanged body styles, and with various disc-seal configurations, our range caters to diverse pressure and flow conditions.
Types of Cast Iron Butterfly Valves as per IS:13095

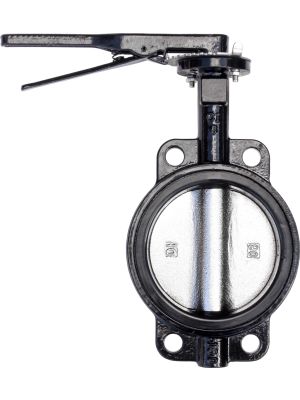

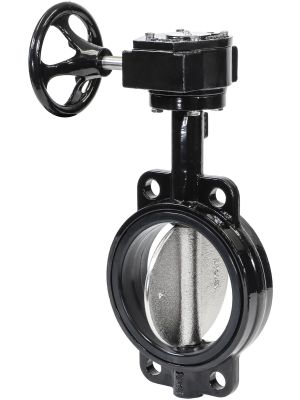

Wafer Type:
Lightweight, compact design that fits between flanges—suitable for systems with tight space and moderate pressure.
Lug Type:
Similar to wafer but with threaded lugs for end-of-line service or dead-end capability.

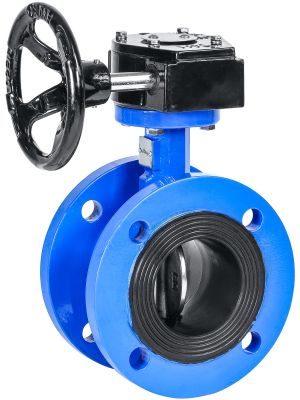

Double Flanged Type:
Heavy-duty design with bolted flanges on both sides—ideal for high-pressure and buried pipeline applications.
General Specifications
- Design Standards: IS:13095
- Body Material: Cast Iron (IS:210 FG 200)
- Disc: Cast Iron / Ductile Iron / Stainless Steel
- Seat/Lining:Moulded Rubber Lined Body for Wafer Type. Renewable Soft Seal on Disc for Flanged Type.
- Coating: Black Bitumen / Epoxy Coating on special request
- Operation: Lever / Handwheel / Gearbox / Actuator
- Accessories: Extension Rods / Headstocks
- Size Range: 50mm to 600mm (Wafer Type) 100mm to 2000mm or higher (Flanged Type)
