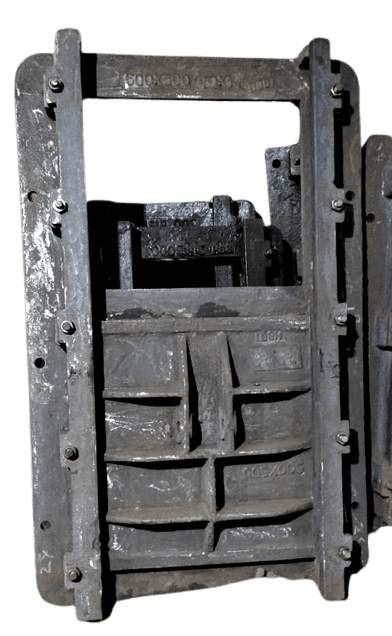

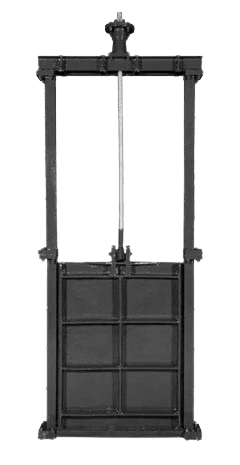

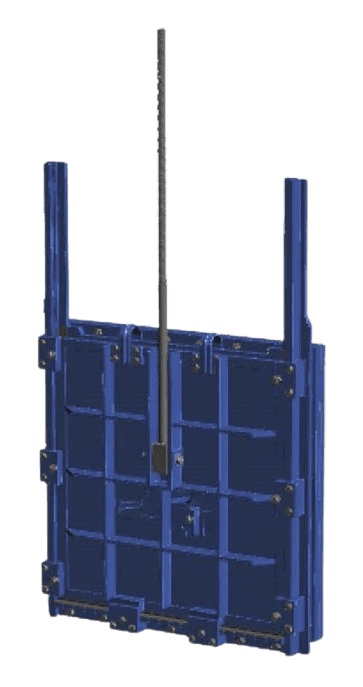

CI Sluice Gates (Penstock Valves)
Cast Iron Sluice Gates (Penstock Valves) as per IS:3042 & IS:13349
Cast Iron Sluice Gates (Penstocks) are precision-engineered to control and isolate water flow in treatment plants, irrigation networks, stormwater drains, and reservoirs. Designed as per IS:3042 and IS:13349, these gates are ideal for both open channel flow and wall-mounted pressurized applications.
Types & Standards
- Single Faced Open Channel Gates – IS:3042
Designed for open-channel flow regulation, these gates are guided within vertical side frames and seat against the channel invert to stop or modulate gravity-fed water.- Mounting: Channel wall (embedded or surface)
- Sealing: Single face (typically bottom and sides)
- Applications: Sewage treatment plants, canals, and drainage channels
- Single Faced Wall / Thimble Mounted Gates – IS:13349
Used for vertical or inclined wall openings, these gates are mounted directly to concrete walls or via a thimble frame to handle hydrostatic pressure from one side.- Mounting: Wall-mounted or thimble-mounted
- Sealing: Single face (pressure-tight from one direction)
- Applications: Intake wells, pump houses, reservoirs, and submerged chambers
General Specifications
- Design Standards: IS:3042 (Open Channel), IS:13349 (Wall/Thimble Mount)
- Material: Cast Iron (IS:210 FG 200) body and gate; Bronze/Gunmetal seating
- Coating: Black Bitumen
- Spindle Types: Rising and Non-Rising Spindle options
- Spindle Material: Stainless Steel / Mild Steel
- Operation: Manual (handwheel) / Bevel gear / Actuator Operated
- Accessories: Extension Rods / Headstocks
- Size Range: 150 mm to 2000 mm and custom builds on request
- Gate Shape: Square or Circular as per customer requirement.
