CI Sluice Valve

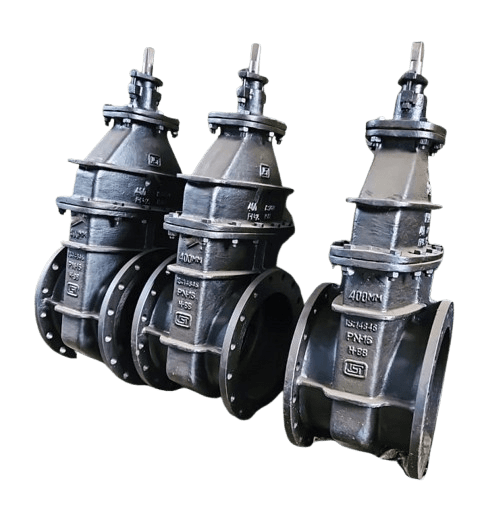

Cast Iron Sluice Valves (IS:14846)
Cast Iron Sluice Valves, manufactured in accordance with IS:14846, are robust and time-tested valves designed for efficient isolation in water distribution and sewage systems. With a non-rising spindle design and renewable brass or bronze seating, these valves are ideal for underground installations and are widely used by water boards, municipalities, and irrigation departments across India.
Available in PN 1.0 and PN 1.6 pressure ratings, these valves are suitable for both clean water and wastewater applications.
KEY FEATURES
- Conforms to IS:14846 – Preferred Dimension (PD)
- Sizes: 50mm to 2000mm (upto 1200mm – ISI Marked)
- Body & Bonnet: Cast Iron (IS:210 FG 200)
- Seat Ring & Stem Nut: L.T.B to IS: 318 Gr.2/S.S., IS: 6603 or AISI-304/316
- Wedge: Gunmetal / Bronze / Rubber Wedge (as per spec)
- Spindle: Stainless Steel or Bronze
- Flanges: Drilled as per IS:1538 (Table 4 & 6)
- Coating: Black Bitumen
- Type: Non Rising Stem (or) Outside Stem & Yoke (OS & Y)
- Operation: Handwheel / Cap / Extension Spindle / Spur Gear / Electric Actuator
- Pressure Ratings:0 & PN1.6
- Additional Accessories: By-pass, Shoe Channel, Indicator, Thrust Bearing, Drain Plug, Extension shaft and Head stock Arrangement.
