Water Meters IS2373 & ISO4064
Cast Iron Water Meters (IS:2373 / ISO:4064 Compliant)
Cast Iron Water Meters are designed for precise and reliable measurement of cold portable water in pipeline systems. Manufactured in accordance with IS:2373 and ISO:4064, these meters are widely used by municipalities, water boards, and industrial users for volumetric flow measurement and billing purposes.

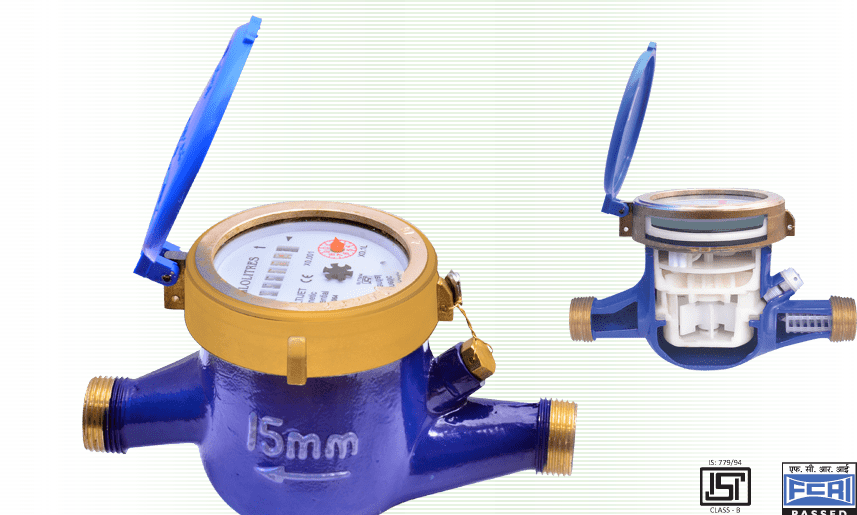

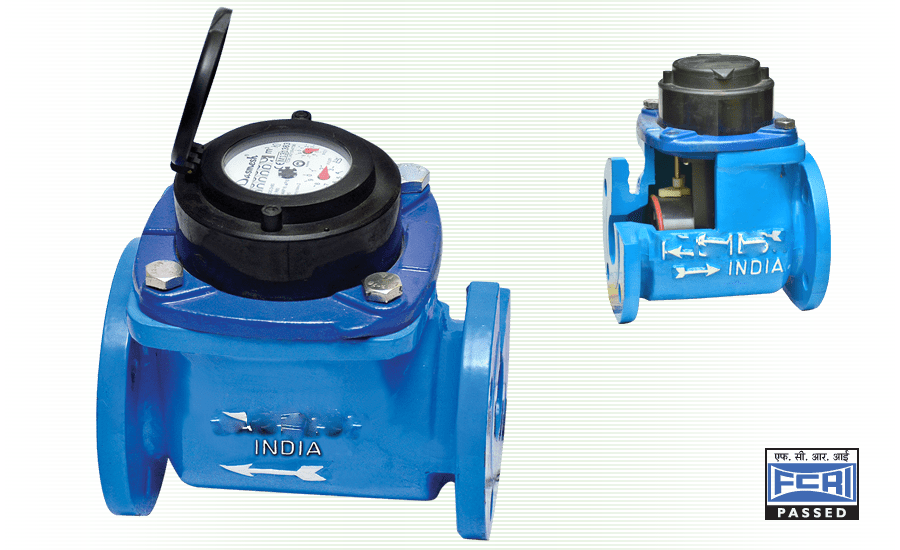

Available in both mechanical (multi-jet) and Woltman type configurations, CI Water Meters are constructed with a heavy-duty cast iron body, ensuring long life in demanding service conditions. The internals are dry-dial or wet-dial type with tamper-proof, vacuum-sealed registers for clear readability and protection from condensation and dust.
Key Features
- Conforms to IS:2373 (for mechanical water meters) and ISO:4064 (Woltman Type Meters)
- Cast iron body with epoxy coating – durable and corrosion resistant
- Screwed Ends Upto 50mm Dia and Flanged ends (Drilled as per IS:1538) including and above 50mm dia for easy pipeline installation
- Options in dry-dial / wet-dial, mechanical or magnetic transmission
- Magnetically coupled, tamper-proof sealed register for long-term reading integrity
- Available in DN15 to DN1000 sizes for domestic to bulk flow applications
- Compatible with AMR systems via pulse output (optional)
